Developement - Production - Quality - Made in Germany

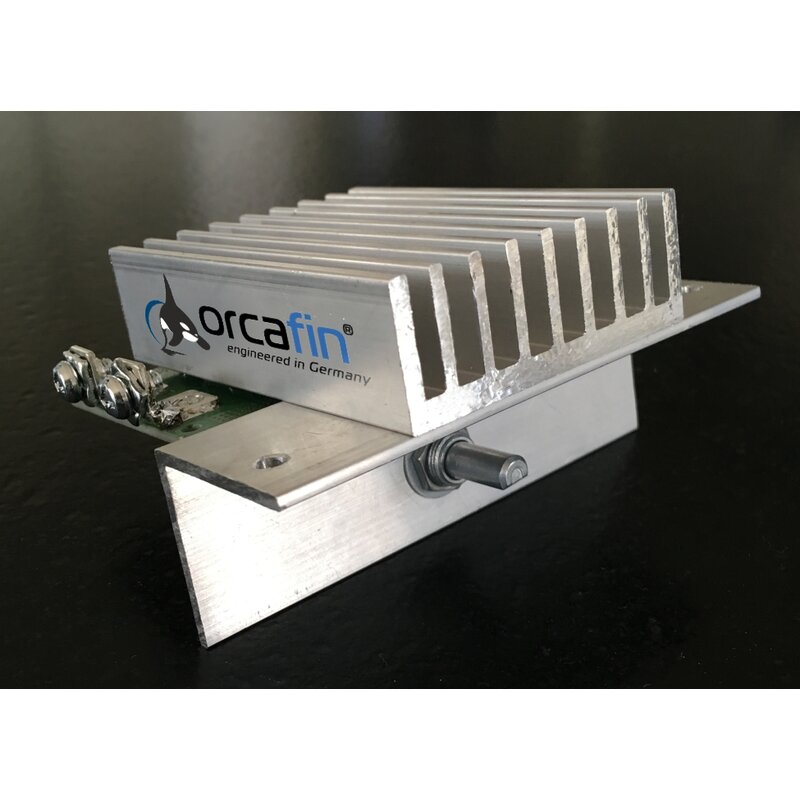

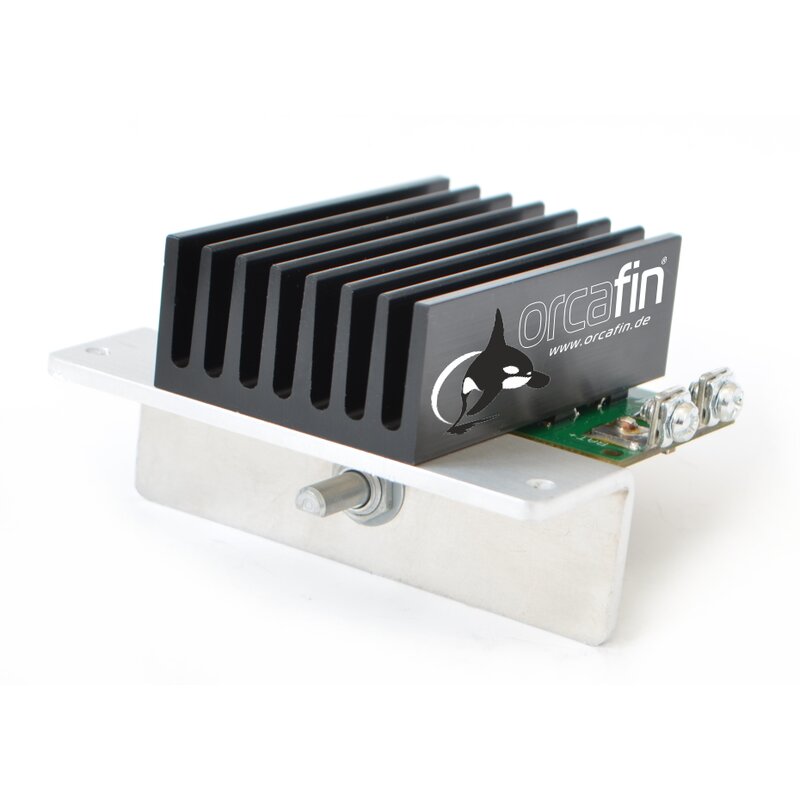

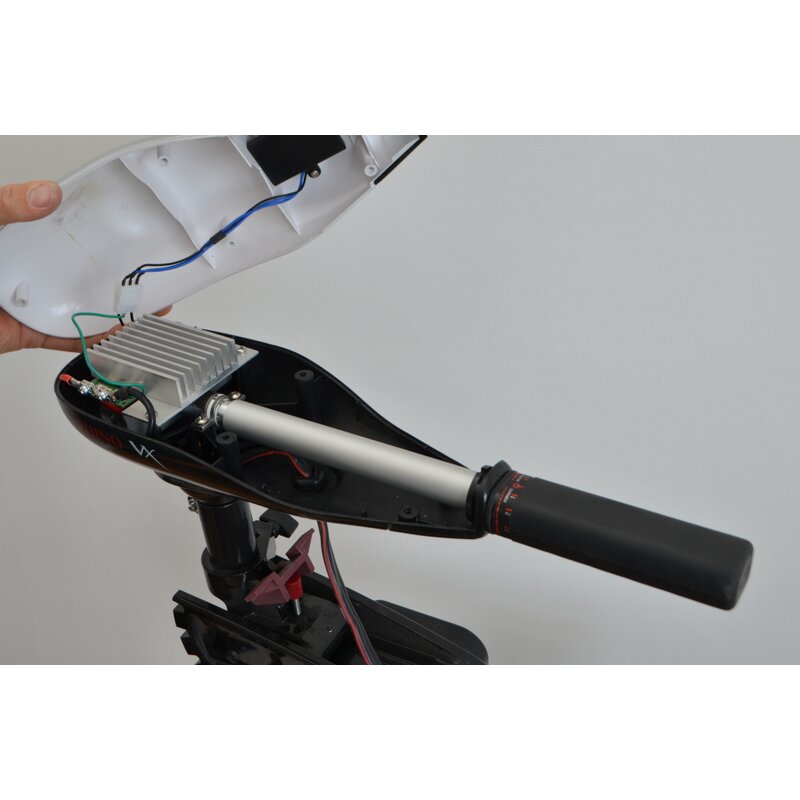

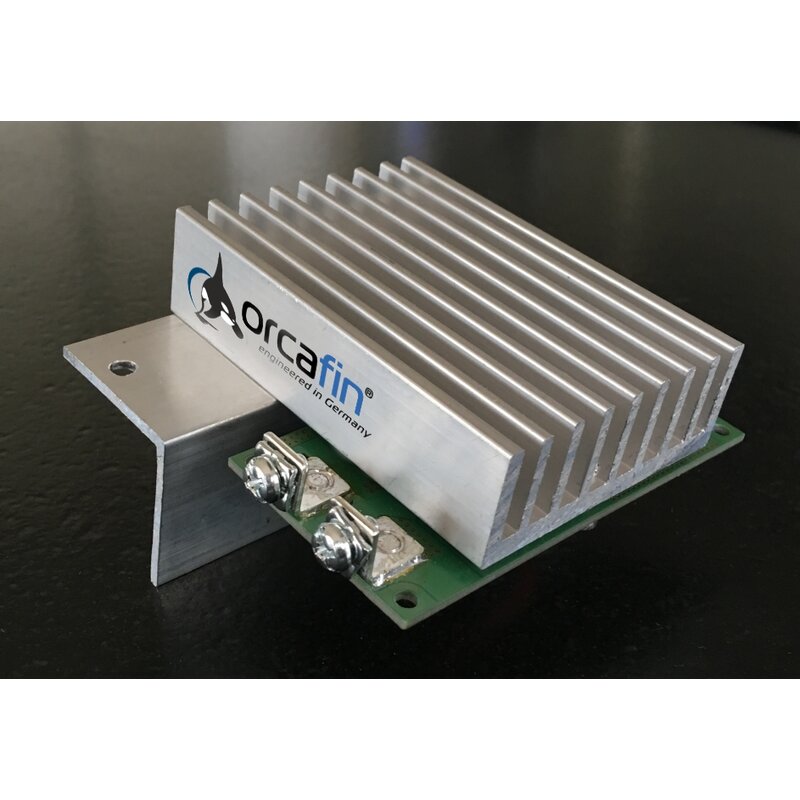

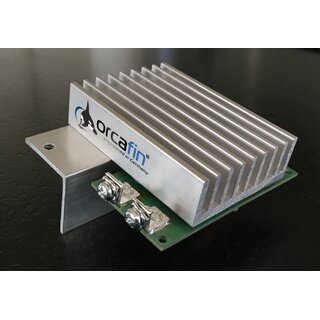

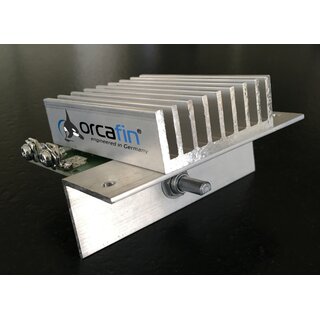

With Orcafin NX-800 all different 12V trolling motors up to 800W power can be upgraded to variable speed. This includes all 12V brush motors on the market with usually up to 65lbs thrust. This special version fits for any 12 volts Rhino VX models.
Please use our special motor specific kits for different motor models.
- 60 Amp long time; 80 Amp short time
- Full speed forward and backward
- Over temperature protection to 10% speed
- Over current protection
- No motorpiping
- Soft Motorstart
- Soft forward/backward switch
- Motorschonendes An- und Umschalten
- Komplett relaisfrei
- Robust Layout
- Made in Germany
- No switch delays - instant power
- No start speed - go as slow as you like
- Microprocessor controlled
- Waterproof coating
- Start protection
- Learnable control lengh i.e. end points for full power
- Supersoft control
- Extreme energy savings of 60% compared to 1st speed
- Measures 80 x 40 x 40 mm
- Only 50g weight
- Compatible for almost all 12volts trolling motors

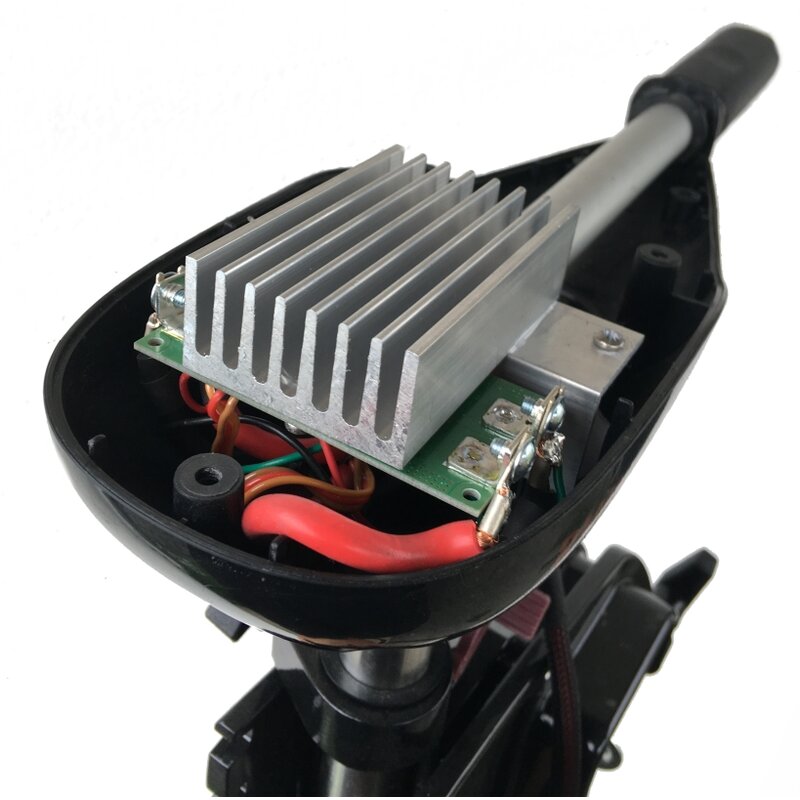

- Assembly in less than 10 minutes

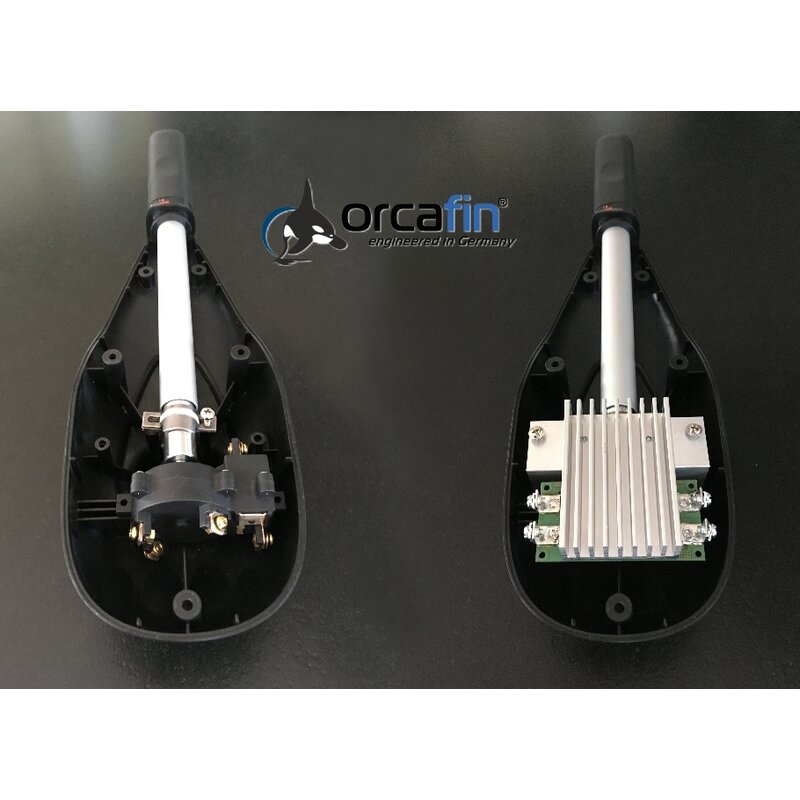

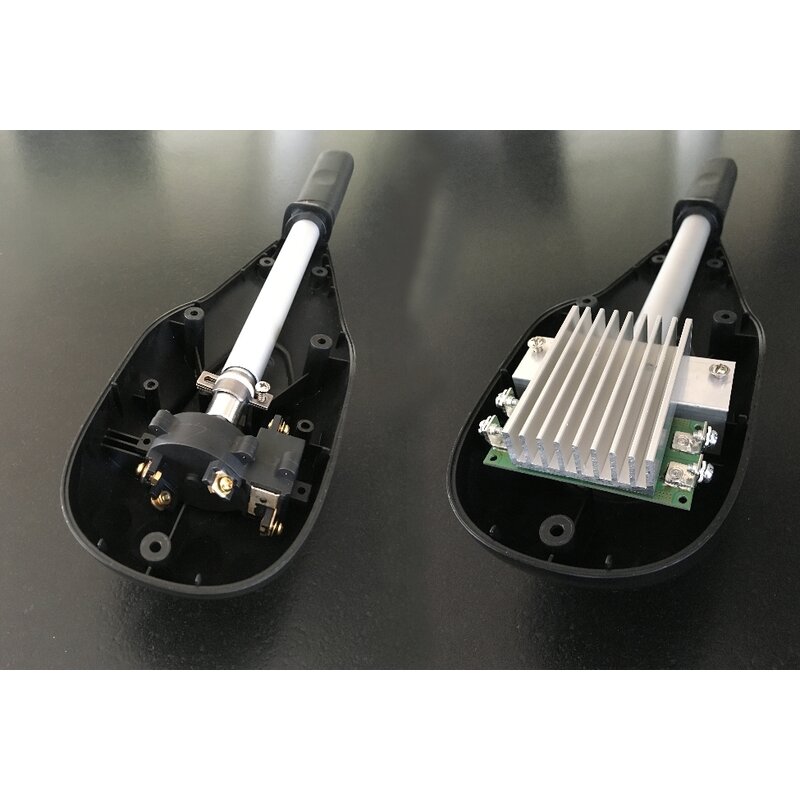

With Orcafin NX you can upgrade your existing 5-speed switch controlled trolling motor to variable speed and save up to 60% energy!
If you have a trolling motor with 54lbs thrust you can see the energy saved by replacing the original 5/3 speed motor switch with Orcafin NX in the following table.
|(1. Speed) 2,2kmh||9,0 Amp||3,9 Amp||57 %|
|(2. Speed) 2,4kmh||10,6 Amp||5,8 Amp||45 %|
|(3. Speed) 3,0kmh||18,5 Amp||11,0 Amp||40 %|
|(4. Speed) 3,6kmh||21,5 Amp||13,6 Amp||37 %|
|(5. Speed) 5,0kmh||42,6 Amp||41,0 Amp||2 %|
